PRIMA 800 series sliding aluminum frame

PRIMA 800 series sliding aluminum frame

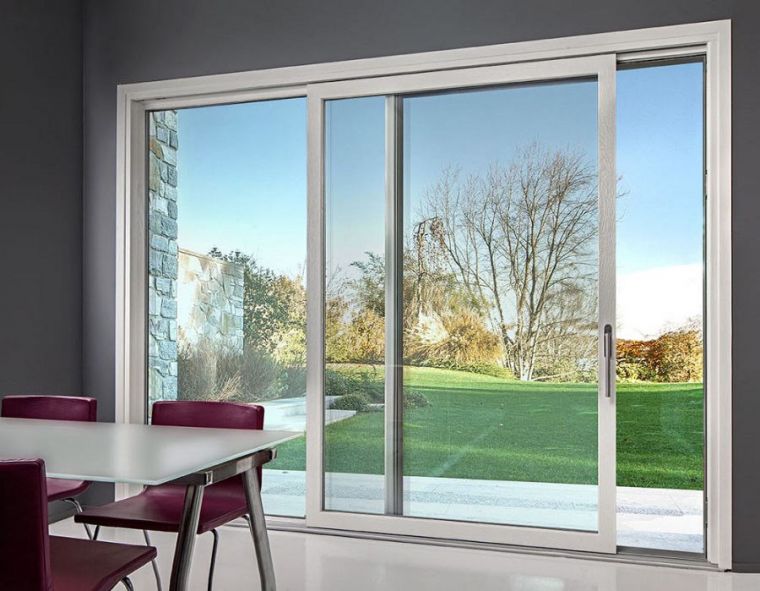

The PRIMA 800 series sliding aluminum frame is a very economical sliding system

with simple straight design lines and many locking points.

The EUROPA 800 series is a sliding system with simple straight design lines.

It was designed to provide solutions for window replacements but also for new constructions, with an emphasis on modern aesthetics and functionality.

The leaves are rolled on a stainless steel guide for quiet and smooth operation.

The waterproofing is done around the perimeter with brushes while it has the possibility to bring a locking mechanism from 2 to 5 points.

The series was designed to work harmoniously with the EUROPA 850 opening system and create a unified look when in the same space.

It is designed to be able to use components of all major European companies covering every type of construction - application desired by the architect, decorator and private consumer.

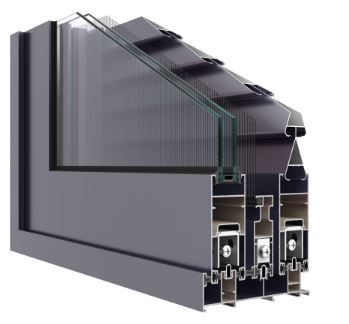

TECHNICAL CHARACTERISTICS EUROPA 850

Aluminum Alloy: EN AW 6060 T66

Hardness: 12 Webster

Minimum paint thickness: 75μm

Profile thickness: 1.2mm

Dimensions tolerated according to: EN 12020-02

Supervisor guide width: 89mm (two sheets)

Recessed driver width: 113mm (glass-screen-shutter)

Glass / shutter sheet thickness: 34mm

Glass sheet glazing thickness: up to 21mm

Maximum sheet size (LxW): 1.6m x 2.6m

Maximum leaf weight: 100Kg

Brief technical details EUROPA 850:

Sliding system.

Bring typology certificates for air permeability, water tightness and wind resistance

Two leaf sizes (small - large).

Waterproofing with brushes.

It accepts single glazing from 4mm and double to 21mm thickness.

Collaborates harmoniously with EUROPA 850.

Use: Sliding frames (superimposed or single-leaf - double-leaf recessed).

BASIC CHARACTERISTICS OF THE SYSTEM

CONSTRUCTION TYPOLOGIES

• Suitable EUROPA 850.

• Recessed EUROPA 850.

• Complex constructions EUROPA 850.

CERTIFICATES EUROPA 850

QUALICOAT: Certification of electrostatic painting process.

IFT Rosenheim: Certification of a window in air permeability, water tightness and resistance to wind pressure.

• Use stainless steel plate on the guides.

• Drawing profiles with straight lines.

• Ability to install multiple locking mechanism.

• Elastic tachometer (EPDM) for sealing drivers in superimposed and recessed.

• Possibility to install double glazing up to 21mm.

• Ability to combine with EUROPA 850 for complex constructions.
